Xiegu X6200 vs Xiegu G90
Home / comparison tool / Xiegu X6200 vs Xiegu G90
Xiegu X6200 or Xiegu G90? I put both radios side by side: data from the manufacturers’ spec sheets and photos at the same scale. The Xiegu X6200 comes out ahead: 6 m power, LAN / remote operation, SD card, current draw on transmit and weight; the Xiegu G90: HF power and AM power.

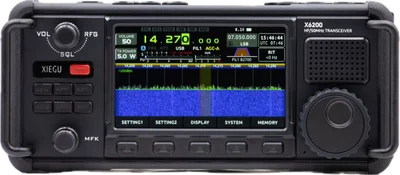

XieguX6200
HF · 6 m8 Wtuner0.9 kg
XieguG90
HF20 Wtuner1.6 kg
Specs side by side
| XieguX6200▲ 5 | XieguG90▲ 2 | |
|---|---|---|
| Bands and modes | ||
| Transmit bands | HF 1.8–29.7 MHz50–54 MHz | HF 1.8–29.7 MHz |
| Receive range | 0.5–30 · 50–54 · airband AM 108–136 MHz | 0.5–30 MHz |
| Modes | SSBCWAMFMRTTY | SSBCWAM |
| Transmit power | ||
| HF | 8 W | 20 W ▲ |
| 50 MHz (6 m) | 8 W ▲ | — |
| AM | no data | 5 W ▲ |
| Receiver | ||
| Construction | SDR, direct RF sampling | SDR, zero-IF receiver |
| Second receiver | — | — |
| Spectrum and waterfall | spectrum + waterfall, FT8 and CW decoder | ±24 kHz spectrum + waterfall, I/Q output |
| Features | ||
| Antenna tuner | built-in, 20–175 Ω | built-in, up to SWR 5:1 |
| Display | 4″ colour, 800×480 | 1.8″ colour; detachable panel |
| LAN / remote operation | Wi-Fi + Bluetooth, remote operation | — |
| USB | 2× USB-C: CAT + audio, keyboard/mouse | COMM port on the panel (USB cable included) |
| SD card | — | |
| Antenna connectors | 1× BNC | 1× SO-239 |
| Power and case | ||
| Power | 12–15 V DC or built-in battery (5 W) | 10.5–16.5 V DC, external power supply |
| Transmit current draw | 3 A ▲ | 6 A |
| Dimensions | 200 × 89 × 51 mmwidth × height × depth | 120 × 45 × 210 mmwidth × height × depth |
| Weight | 0.9 kg ▲ | 1.6 kg |
| Other | ||
| Memory channels | no data | no data |
| Release | no data | no data |
Data: manufacturers’ spec sheets and manuals · as of 31.10.2026
