Icom IC-7610 vs Yaesu FTDX101D
Home / comparison tool / Icom IC-7610 vs Yaesu FTDX101D
Icom IC-7610 or Yaesu FTDX101D? I put both radios side by side: data from the manufacturers’ spec sheets and photos at the same scale. The Icom IC-7610 comes out ahead: LAN / remote control and weight.
IcomIC-7610
HF · 6 m100 Wtuner8.8 kg

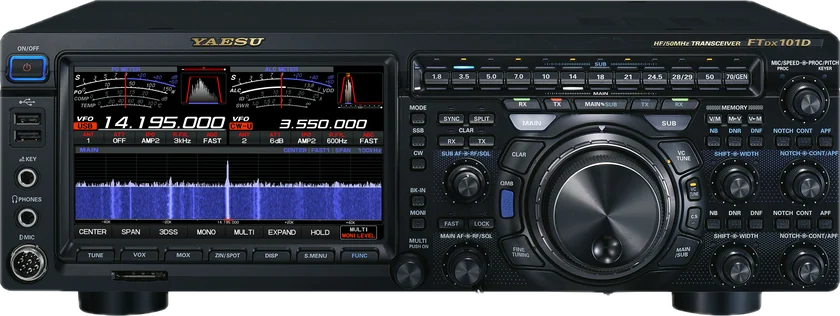

YaesuFTDX101D
HF · 6 m100 Wtuner12.0 kg
Specs side by side
| IcomIC-7610▲ 2 | YaesuFTDX101D▲ 0 | |
|---|---|---|
| Bands and modes | ||
| Transmit bands | HF 1.8–29.7 MHz50–52 MHz | HF 1.8–29.7 MHz50–52 MHz |
| Receive range | 0.03–60 MHz | 0.03–75 MHz |
| Modes | SSBCWRTTYPSKAMFM | SSBCWAMFMRTTYPSK |
| Transmit power | ||
| HF | 100 W | 100 W |
| 50 MHz (6 m) | 100 W | 100 W |
| AM | 25 W | 25 W |
| Receiver | ||
| Construction | SDR, direct RF sampling (2 A/D converters) | hybrid: superhet with roofing filters + SDR for spectrum |
| Second receiver | yes — two independent receivers MAIN/SUB | yes — two independent receivers MAIN/SUB |
| Spectrum and waterfall | dual spectrum + waterfall, I/Q output | dual spectrum scope + waterfall + 3DSS |
| Features | ||
| Antenna tuner | HF + 6 m, up to SWR 3:1 | HF + 6 m, up to SWR 3:1 |
| Display | 7″ colour touchscreen, 800×480; DVI-D output | 7″ colour touchscreen; DVI-D output |
| LAN / remote operation | built-in LAN, RS-BA1 without a PC | SCU-LAN10 option |
| USB | USB-B: CAT + audio, USB-B: I/Q, USB-A on the front | USB-B: CAT + audio, 2× USB-A |
| SD card | ||
| Antenna connectors | 2× SO-239 + RX input/output (BNC) | 3× SO-239 (ANT3 also RX-only) |
| Power and case | ||
| Power | 13.8 V DC, external power supply | 13.8 V DC, external power supply |
| Transmit current draw | 23 A | 23 A |
| Dimensions | 340 × 118 × 277 mmw × h × d | 420 × 130 × 322 mmwidth × height × depth |
| Weight | 8.8 kg ▲ | 12.0 kg |
| Other | ||
| Memory channels | 99 | 99 |
| Release | 2016 | 2019 |
Data: manufacturers’ spec sheets and manuals · as of 31.10.2026
