Yaesu FT-710 AESS vs Yaesu FTDX10
Home / Comparison tool / Yaesu FT-710 AESS vs Yaesu FTDX10
Yaesu FT-710 AESS or Yaesu FTDX10? I’ve put both radios side by side: data from the manufacturers’ spec sheets and photos at the same scale. The Yaesu FT-710 AESS comes out better: transmit current draw and weight.

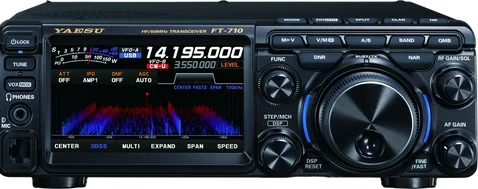

YaesuFT-710 AESS
HF · 6 m100 Wtuner4.5 kg
YaesuFTDX10
HF · 6 m100 Wtuner5.9 kg
Specs side by side
| YaesuFT-710 AESS▲ 2 | YaesuFTDX10▲ 0 | |
|---|---|---|
| Bands and modes | ||
| Transmit bands | HF 1.8–29.7 MHz50–52 MHz | HF 1.8–29.7 MHz50–52 MHz |
| Receive range | 0.03–75 MHz | 0.03–75 MHz |
| Modes | SSBCWAMFMRTTYPSK | SSBCWAMFMRTTYPSK |
| Transmit power | ||
| HF | 100 W | 100 W |
| 50 MHz (6 m) | 100 W | 100 W |
| AM | 25 W | 25 W |
| Receiver | ||
| Construction | SDR, direct RF sampling | hybrid: superhet with roofing filters + SDR for spectrum |
| Second receiver | — | — |
| Spectrum and waterfall | spectrum + waterfall + 3DSS | spectrum + waterfall + 3DSS |
| Features | ||
| Antenna tuner | HF + 6 m, up to SWR 3:1 | HF + 6 m, up to SWR 3:1 |
| Display | 4.3″ colour touchscreen; DVI-D output | 5″ colour touchscreen; DVI-D output |
| LAN / remote operation | SCU-LAN10 option | SCU-LAN10 option |
| USB | USB-B: CAT + audio, USB-A | USB-B: CAT + audio, 2× USB-A |
| SD card | ||
| Antenna connectors | 1× SO-239 | 1× SO-239 |
| Power and case | ||
| Power | 13.8 V DC, external power supply | 13.8 V DC, external power supply |
| Transmit current draw | 21 A ▲ | 23 A |
| Dimensions | 239 × 80 × 247 mmwidth × height × depth | 266 × 91 × 263 mmwidth × height × depth |
| Weight | 4.5 kg ▲AESS bundle includes SP-40 speaker | 5.9 kg |
| Other | ||
| Memory channels | 99 | 99 |
| Release | 2022 | 2020 |
Data: manufacturers’ spec sheets and manuals · as of 31.10.2026
