Icom IC-7760 vs Yaesu FTDX101D
Home / Comparison / Icom IC-7760 vs Yaesu FTDX101D
Icom IC-7760 or Yaesu FTDX101D? I put both radios side by side: data from the manufacturers’ spec sheets and photos at the same scale. The Icom IC-7760 comes out better: HF power, 6 m power, AM power and LAN / remote control; Yaesu FTDX101D: weight.

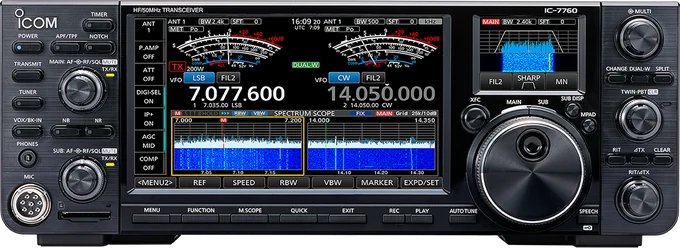

IcomIC-7760
HF · 6 m200 Wtuner18.1 kg
YaesuFTDX101D
HF · 6 m100 Wtuner12.0 kg
Specs side by side
| IcomIC-7760▲ 4 | YaesuFTDX101D▲ 1 | |
|---|---|---|
| Bands and modes | ||
| Transmit bands | HF 1.8–29.7 MHz50–52 MHz | HF 1.8–29.7 MHz50–52 MHz |
| Receive range | 0.03–60 MHz | 0.03–75 MHz |
| Modes | SSBCWRTTYPSKAMFM | SSBCWAMFMRTTYPSK |
| Transmit power | ||
| HF | 200 W ▲ | 100 W |
| 50 MHz (6 m) | 200 W ▲ | 100 W |
| AM | 50 W ▲ | 25 W |
| Receiver | ||
| Construction | SDR, direct RF sampling; panel and separate RF unit | hybrid: superhet with roofing filters + SDR for spectrum |
| Second receiver | yes — two identical receivers MAIN/SUB | yes — two independent receivers MAIN/SUB |
| Spectrum and waterfall | dual spectrum + waterfall, I/Q output | dual spectrum scope + waterfall + 3DSS |
| Features | ||
| Antenna tuner | HF + 6 m, up to SWR 3:1 | HF + 6 m, up to SWR 3:1 |
| Display | 7″ touchscreen 800×480 + second 2.4″; DVI-D output | 7″ colour touchscreen; DVI-D output |
| LAN / remote operation | panel ↔ RF unit via LAN or the Internet; RS-BA1 | SCU-LAN10 option |
| USB | USB-B + USB-A (panel), USB-B I/Q (RF unit) | USB-B: CAT + audio, 2× USB-A |
| SD card | ||
| Antenna connectors | 4× SO-239 + RX input/output (BNC) | 3× SO-239 (ANT3 also RX-only) |
| Power and case | ||
| Power | built-in 230 V AC power supply (RF unit) | 13.8 V DC, external power supply |
| Transmit current draw | no data | 23 A |
| Dimensions | 340 × 118 × 103.5 mmpanel; RF unit 425 × 149 × 442 mm | 420 × 130 × 322 mmwidth × height × depth |
| Weight | 18.1 kgpanel 2.3 kg + RF unit 15.8 kg | 12.0 kg ▲ |
| Other | ||
| Memory channels | 99 | 99 |
| Release | 2024 | 2019 |
Data: manufacturers’ spec sheets and manuals · as of 31.10.2026
