Yaesu FTDX10 vs Icom IC-7610
Home / comparison tool / Yaesu FTDX10 vs Icom IC-7610
Yaesu FTDX10 or Icom IC-7610? I set both radios side by side: data from the manufacturers’ spec sheets and photos to the same scale. Yaesu FTDX10 comes out better: weight; Icom IC-7610: second receiver and LAN / remote control.

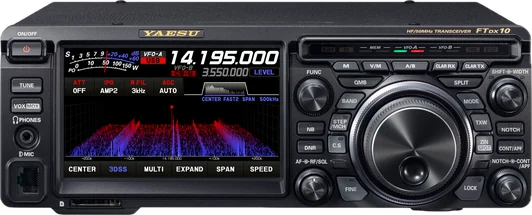

YaesuFTDX10
HF · 6 m100 Wtuner5.9 kg

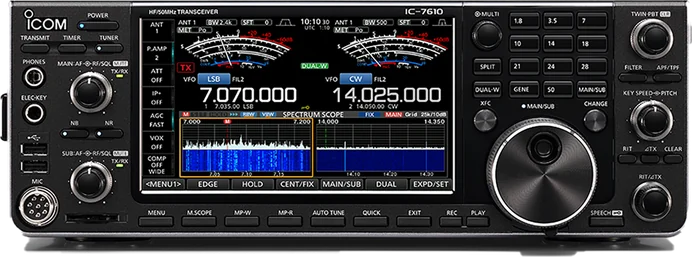

IcomIC-7610
HF · 6 m100 Wtuner8.8 kg
Specs side by side
| YaesuFTDX10▲ 1 | IcomIC-7610▲ 2 | |
|---|---|---|
| Bands and modes | ||
| Transmit bands | HF 1.8–29.7 MHz50–52 MHz | HF 1.8–29.7 MHz50–52 MHz |
| Receive range | 0.03–75 MHz | 0.03–60 MHz |
| Modes | SSBCWAMFMRTTYPSK | SSBCWRTTYPSKAMFM |
| Transmit power | ||
| HF | 100 W | 100 W |
| 50 MHz (6 m) | 100 W | 100 W |
| AM | 25 W | 25 W |
| Receiver | ||
| Construction | hybrid: superhet with roofing filters + SDR for spectrum | SDR, direct RF sampling (2 A/D converters) |
| Second receiver | — | yes — two independent receivers MAIN/SUB |
| Spectrum and waterfall | spectrum + waterfall + 3DSS | dual spectrum + waterfall, I/Q output |
| Features | ||
| Antenna tuner | HF + 6 m, up to SWR 3:1 | HF + 6 m, up to SWR 3:1 |
| Display | 5″ colour touchscreen; DVI-D output | 7″ colour touchscreen, 800×480; DVI-D output |
| LAN / remote operation | SCU-LAN10 option | built-in LAN, RS-BA1 without a PC |
| USB | USB-B: CAT + audio, 2× USB-A | USB-B: CAT + audio, USB-B: I/Q, USB-A on the front |
| SD card | ||
| Antenna connectors | 1× SO-239 | 2× SO-239 + RX input/output (BNC) |
| Power and case | ||
| Power | 13.8 V DC, external power supply | 13.8 V DC, external power supply |
| Transmit current draw | 23 A | 23 A |
| Dimensions | 266 × 91 × 263 mmwidth × height × depth | 340 × 118 × 277 mmw × h × d |
| Weight | 5.9 kg ▲ | 8.8 kg |
| Other | ||
| Memory channels | 99 | 99 |
| Release | 2020 | 2016 |
Data: manufacturers’ spec sheets and manuals · as of 31.10.2026
